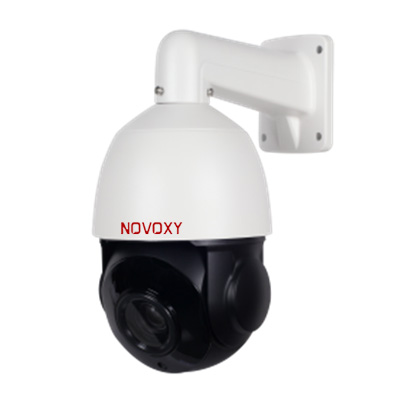

Model number:SK-HD5420F-200W20X/SK-HD5420F-200W30X
4.5 Inch 4 IN 1 PTZ Speed Dome
20X/30X Zoom Optical
* OSD menu is available
* Keep original analog system
* AHD/TVI/CVI/CVBS selectable
* 4.5'' half metal body construction
* Real time transmission ,lossless video
* 20X/30X zoom optional
* Long distance transmission up to 500 meters
Model
SK-HD5420F-200W20X
SK-HD5420F-200W30X
Sensor
1/3" CMOS 2MP
Chipset+sensor
NVP2441+/Sony307
Lens
20X f=4.7~94mm
30X f=4.7~141mm
BLC
Support
AGC
Auto/Maniual
WB
Indoor/Outdoor/Auto/Manual
S/N Ratio
≥50dB
WDR
DWDR
Rotation Range
Pan: 0°~360° , Tilt: 0°~93°
Rotation Speed
Pan: 0~80°/s , Tilt:0~40°/s
Auto Flip
Horizontal 180°, Vertical 93°
Preset Points
220pcs preset( Dwell time 01-60s interval available)
A-B Scan
User programmable (scan speed 1-64 levels setting available )
Guard Tours
3 groups (Max.16 points, dwell time user selectable)
PWR On Action
Memory/Tour 1/360° scan/A-B scan/Park 1/None
Video interface output
AHD/TVI/CVI/CVBS selectable
Communication mode
RS485 (+/-) / coaxial cable
Operating Temperature
-40℃~+60℃
Power
DC12V 4A
Power Consumption
≤ 25W
Auto Control IR LED
PWM
IR distance
Up to 50 meters
LEDs
6PCS Array 42Mil IR LED
