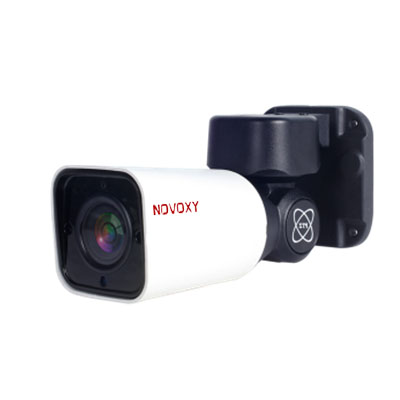

Model number:SK-HD326B-200W4X/SK-HD326B-500W4X
4X 2.8-12MM
2MP 4 in1 AHD/TVI/CVI/CVBS Output
1) Support coaxical function
2) Pan/Tilt/Zoom, A-B scan, tour available
3) Real time transmission,lossless video
4) Support AHD/TVI/CVI/CVBS output
Model
SK-HD326B-200W4X
SK-HD326B-500W4X
Solution
1/3" CMOS 2MP
1/2.7” CMOS 5MP
Chipset+sensor
NVP2441+Sony307
NVP2477+OV05A10
Lens
4X f=2.8~12MM
WB
Auto
BLC
Support
AGC
Auto/Manual
S/N Ratio
>50dB
Rotation Range
Pan:0º~160º , Tilt:0º~55º
Rotation Speed
Pan:0~25°/s , Tilt:0~20º/s
Auto Flip
Preset Points
220pcs preset( Dwell time 01-60s interval available)
Guard Tours
3 groups ( each group 16 preset, dwell time and speed selectable)
AB scan range
Any point in range:-45º~40º and 0º~200º
AB scan speed
1-9 grades
Signal Transfer
AHD/CVI/TVI/CVBS selectable
Operating temperature
-40℃~+60℃
Consumption
≤15W
Related validation
IP66,CE,FCC,RoHs
IR distance
Up to 50 meters
LEDs
6 PCS Array 42Mil IR LED
