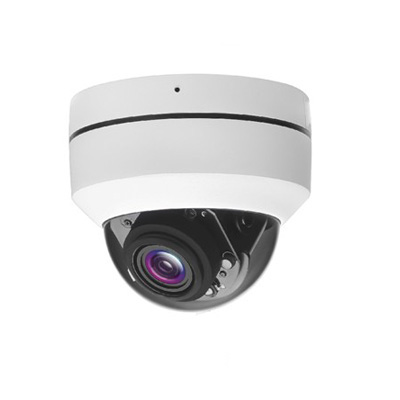

5X 2.7-13.5mm Lens
Support AHD/TVI/CVI/CVBS output
* Support coaxical function
* IR range reach up to 45 Meters
* 1.5 inch Vandal proof body, IP67, IK10
* Pan/Tilt/Zoom, A-B scan, tour available
* Real time transmission,lossless video
* Support AHD/TVI/CVI/CVBS output
Camera
Model
SK-HD2520RD-5X
SK-HD2550RD-5X
Solution
1/3" CMOS 2MP
1/2.7” CMOS 5MP
Chipset+sensor
NVP2441+Sony323/Sony307
NVP2477+OV05A10
Lens
5X f=2.7~13.5MM
BLC
Support
AGC
Auto/Manual
WB
Indoor/Outdoor/Auto/Manual
S/N Ratio
>50dB
Dome
Rotation Range
Pan: 0°~355º , Tilt: 0°~70 º
Rotation Speed
Pan: 0~25°/s , Tilt: 0~20°/s
Auto Flip
Preset Points
220pcs preset( Dwell time 01-60s interval available)
Guard Tours
3 groups ( each group 16 preset, dwell time and speed selectable)
AB scan range
Support, 0~355º
AB scan speed
1-9 grades
Signal Transfer
AHD/CVI/TVI/CVBS selectable
Operating temperature
-15℃~+60℃
Auto Control IR LED
PWM
Consumption
≤10W
Related validation
IP67,IK10, CE,FCC,RoHs
IR parameters
IR distance
up to 45 meters
LEDs
Array 30Mil 4pcs
