5MP 4 IN 1 PTZ Bullet Camera-4 in1 PTZ Camera-Shenzhen Novoxy Technology Ltd.

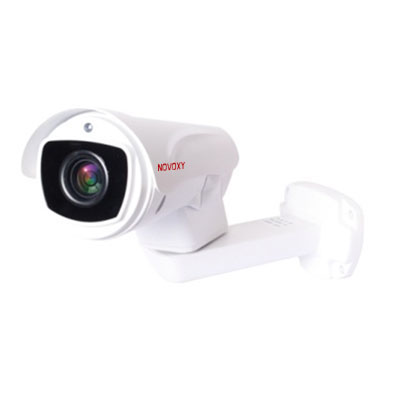

5MP 4 IN 1 PTZ Bullet Camera

Model number：SK-HD355T-500W4X/SK-HD355T-500

4X 2.8-12MM and 10X 5-50MM Opitional

5MP 4 in1 AHD/TVI/CVI/CVBS Output

Inquiry Skype

* OSD menu is available

* Total Metal housing, IP66

* A-B scan, tour available

* Support audio ( optional)

* Support coaxical function

* Real time transmission,lossless video

* Support AHD/TVI/CVI/CVBS output

Camera
Model	SK-HD355T-500W4X		SK-HD355T-500W10X
Solution	1/2.7” CMOS 5MP
Chipset+sensor	NVP2477+OV05A10
Lens	4X f=2.8-12MM	10X f=5~50MM
WB	Auto
BLC	Support
AGC	Auto/Manual
S/N Ratio	>50dB
Rotation Range	Pan:0º~200º , Tilt:~45º~40º
Rotation Speed	Pan:0~30°/s , Tilt:0~25º/s
Auto Flip	Support
Preset Points	220pcs preset( Dwell time 01-60s interval available)
Guard Tours	3 groups ( each group 16 preset, dwell time and speed selectable)
AB scan range	Any point in range:-45º~40º and 0º~200º
AB scan speed	1-9 grades
Signal Transfer	AHD/CVI/TVI/CVBS selectable
Operating temperature	-40℃~+60℃
Consumption	≤15W
Related validation	IP66,CE,FCC,RoHs
IR parameters
IR distance	Up to 100 meters
LEDs	6 PCS Array 42Mil IR LED			4 PCS Array 42Mil IR+2 PCS Laser LED
