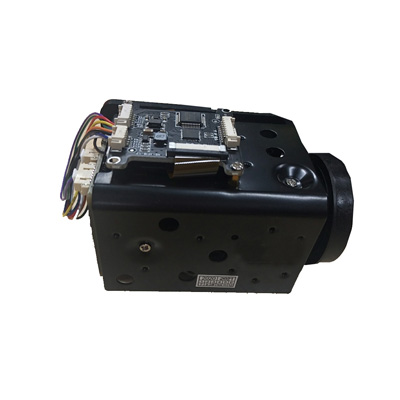

3MP Zoom IP Camera Module

Model number：SK-NRT3230P

20X Optical Lens 4.7 to 94mm

3.0M SC3335 Black light illumination sensor

Inquiry Skype

Features
Specification
Download
Firmware
Accessories

Supporting Humanoid detection Face detection and tripping line detection, and supports intelligent functions such as customized face detection, number statistics, etc.

1080P HD Black light illumination resolution,clear and fine images;

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;

Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。

Support ONVIF;access third party，Support various mobile monitoring(iPhone,Android);

Provide web、CMS、center platform management software MYEYE,provide SDK development

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

Model	SK-NRT3230P
System structure	Embedded RTOS,dual-core 32bit DSP(XM535AI),pure hard compression ,watch dog
Sensor	3.0M 1/2.8 SC3335 Black light illumination CMOS sensor,color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2
Video compression	H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output	Main stream: 23041296@20fps，19201080@25fps; sub-stream: 800448@25fps，704576@25fps， 640*360@25fps
Shutter	1/50(1/60)s to 1/10,000s
Lens	4.7 to 94mm（F1.6 to F2.7）
Wide dynamic	Support digital
Auto iris	N/A
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
Extension interface	Support external audio power amplifier, white light signal control, UART to expand other functions
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZ	N/A
Motor interface	N/A
Alarm I/O	N/A
WIFI interface	N/A
Reset interface	N/A
SD Card	N/A
Reliability	Comprehensive lightning protection, 7 * 24 hours-10℃～65℃ high temperature stable and reliable testing
Intelligence analysis	Supporting human detection, face detection, and support to customize other intelligent functions
Other function	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIF	Support
Mobile monitoring	Support multiple mobile monitoring（iOS，Android）
Power	DC12V/2A input, power consumption:≤3W,
