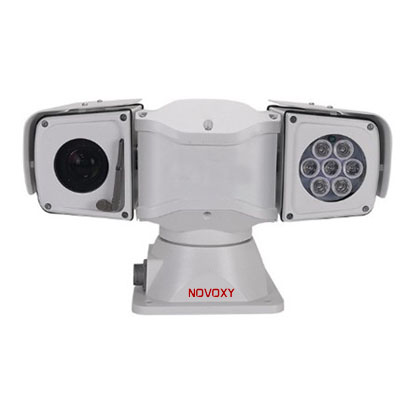

Model NO.
|
SK-HD9230IP-LA
|
|
Image Device
|
1/2.8" Progressive Scan CMOS
|
|
Effective Pixels
|
2.0 Megapixel
|
|
Resolution
|
1280*1080@30FPS
|
|
Min illumination
|
0.1Lux/F1.4(Color) 0.005Lux/F1.4(B/W) 0Lux/F1.4(IR on)
|
|
IR Range
|
Over 150 meter
|
|
White Balance
|
ON/OFF, auto/indoor/outdoor
|
|
AGC
|
Auto/Manual
|
|
S/N Ration
|
>50dB
|
|
Electronic Shutter
|
P:1/3~1/10,000s N:1/4~1/10,000s
|
|
D/N Mode
|
Day & Night (IR cut)
|
|
WDR
|
ON/OFF optional
|
|
Digital zoom
|
30x optical ZOOM,12 x electronic amplifier
|
|
Privacy Zone
|
8 zones
|
|
Focusing
|
Auto/Manual
|
|
Lens length
|
4.7-94mm
|
|
Preset
|
128
|
|
Cruise Scanning
|
6 cruises, 16presets for each cruise,128 preset positions
|
|
Pattern scanning
|
4 sets, 180s PTZ memory
|
|
Horizontal Preset Speed
|
160°/S
|
|
Vertical Preset Speed
|
120°/S
|
|
Horizontal Manual Controlling Speed
|
0.4°~80°/S
|
|
Vertical Manual Controlling Speed
|
0.4°~60°/S
|
|
Horizontal Rotation
|
Pan: 0~360º
|
|
Vertical Rotation
|
+90°~-90°
|
|
Power Off Memory
|
Remember the state before power outage, including horizontal and vertical location, and lens zooming, resume when restarting
|
|
Auto Parking
|
Auto call up of preset/ patrol/ pattern/tilt scan/random scan/frame scan/panorama scan, after a defined time of inactivity
|
|
OSD menu
|
Chinese/English
|
|
Alarm (optional)
|
2 inputs, 1 output; can be preset point linkage, cruise scan, pattern scan, trigger switch output the client electronic map
|
|
PTZ Control Protocol
|
PELCO-P, PELCO-D(can be added)
|
|
Power Supply
|
DC10.5V~DC18V(3.5A, Vehicle);AC24V(2.5A, Normal)
|
|
Power Consumption
|
50W max
|
|
Protection levels
|
IP66 lightning protection, anti-surge
|
|
Operation Temperature
|
-40°C~+65°C
|
|
Shock Resistance
|
≥4G
|
|
net weight
|
8KG
|
